자동화ㅣ대용량 처리 장비 > Barcode System

IntelliXmark™ Sample Tube Labelling System

  • 제품이미지 0
  • 제품이미지 0
제품용도
다양한 종류의 샘플 tube에 글자, 1D linear barcode, 2D data matrix code 등을 직접 라벨링 할 수 있는 제품
브랜드
AZENTA
개요
- 기존의 라벨지나 스티커를 대신하여 샘플 tube에 바로 글자, 1D linear barcode, 2D data matrix code 등을 라벨링하여 보관 및 관리를 할 수 있는 시스템
- 8.5mm, 11.5mm, 12.7mm 직경의 tube를 위한 adapter를 기본적으로 포함
- 다양한 크기의 tube에 사용할 수 있도록 여러 adapter를 제공

Related Information

제품자료
브로셔
비디오
소개영상

제품특징




폭 넓은 호환성


- 0.5ml에서 50ml까지 다양한 용량의 tube에 라벨링 가능

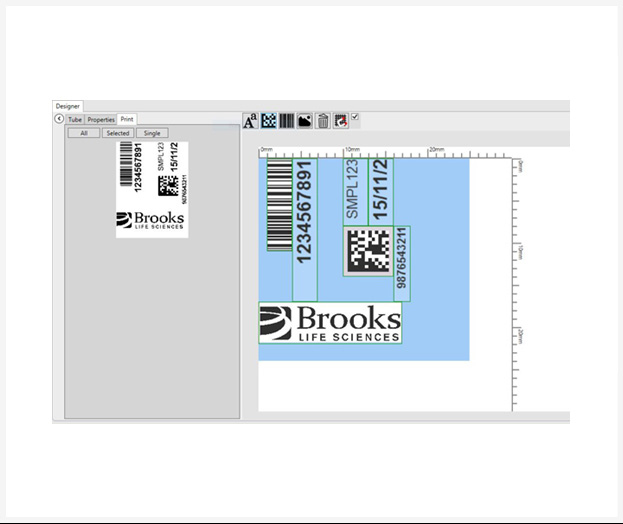

- 소프트웨어 상에서 만들어진 tube profile의 경우 reference 및 tracking을 위해 저장 가능
- 다양한 adapter를 사용하여 다양한 직경의 tube에 사용 가능







다양한 라벨링

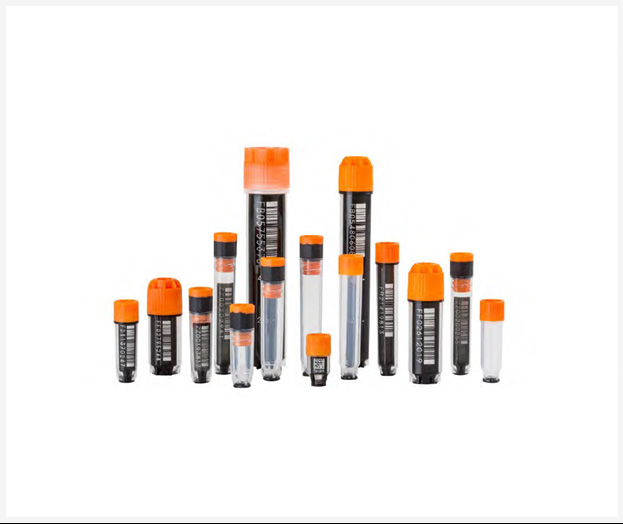

- 글자, 1D linear barcode, 2D data matrix code, 그래픽 파일 등 다양하게 라벨링 가능
- 다양한 방향으로 여러 줄로 라벨링 가능 (예, 샘플 이름, 사용자 이름, 날짜, 시간 등)
- 글자 크기, 종류를 다양하게 설정 가능







고품질의 라벨링

- ‘Thermal Pixel Printing technology’ 적용으로 라벨링이 더욱 명확하고 지속시간이 길어짐
- 다양한 잉크(메탈릭 블루, 블랙, 화이트 등)를 통해 tube에 폭 넓게 적용 가능
- 70% ethanol, 70% isopropanol, 98% 이상의 methanol, DMSO, pure haematoxylin, 액체 질소, 물리적인 마모 등에도 높은 저항력을 가짐







제품사양

Tube compatibility Most plastic laboratory tubes 0.5 to 50ml
Dimensions 280mm (L) x 270mm (W) x 122mm (H)
Weight 4.8kg
Label detail Print height x width : 6mm x 40mm
Print method Thermal Pixel Printing

주문정보

Cat No. 품명 규격 제조사 제품정보 수량 견적문의
76-0001 IntelliXmark™ Tube Marker 1 ea Brooks IntelliXmark™ includes tube adapters 76-2001, 76-2002, 76-2003 and printer ribbons 76-1001, 76-1002 and 76-1003 (1 each per case); 1 tube marker 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
전체선택
IntelliXmark™ Tube Marker
Cat No.
76-0001
규격
1 ea
제조사
Brooks
제품정보
IntelliXmark™ includes tube adapters 76-2001, 76-2002, 76-2003 and printer ribbons 76-1001, 76-1002 and 76-1003 (1 each per case); 1 tube marker
수량
수량증가수량감소

관련제품

Cat No. 품명 규격 제조사 제품정보 수량 견적문의
76-1001 IntelliXmark™ Printer Ribbon 1 ea Brooks metallic blue; 1 roll 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-1002 IntelliXmark™ Printer Ribbon 1 ea Brooks white; 1 roll 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-1003 IntelliXmark™ Printer Ribbon 1 ea Brooks black; 1 roll 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-1004 IntelliXmark™ Printer Ribbon 1 ea Brooks universal black; 1 roll 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-2001 IntelliXmark™ Tube Adapter 1 ea Brooks hole diameter 8.5mm, for FluidX 96-format tubes and any other 9mm external diameter tube; 1 adapter 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-2002 IntelliXmark™ Tube Adapter 1 ea Brooks hole diameter 12.7mm, for FluidX 48-format cryo tubes and any other 12.7mm external diameter tubes; 1 adapter 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-2003 IntelliXmark™ Tube Adapter 1 ea Brooks hole diameter 11.5mm, for 1.5ml/2ml tubes; 1 adapter 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-2005 IntelliXmark™ Tube Adapter 1 ea Brooks hole diameter 10.4mm, for 2ml screw cap tubes (10mm diameter); 1 adapter 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-2006 IntelliXmark™ Tube Adapter 1 ea Brooks hole diameter 18mm, for 15ml tubes; 1 adapter 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-2007 IntelliXmark™ Tube Adapter 1 ea Brooks hole diameter 30mm, for 50ml tubes; 1 adapter 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-2008 IntelliXmark™ Tube Adapter 1 ea Brooks hole diameter 8.2mm, for Matrix tubes; 1 adapter 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
76-2009 IntelliXmark™ Tube Adapter 1 ea Brooks hole diameter 6.4mm, for 0.2ml tubes; 1 adapter 수량증가수량감소 카트담기 카트담기
견적문의 견적문의
전체선택
IntelliXmark™ Printer Ribbon
Cat No.
76-1001
규격
1 ea
제조사
Brooks
제품정보
metallic blue; 1 roll
수량
수량증가수량감소
IntelliXmark™ Printer Ribbon
Cat No.
76-1002
규격
1 ea
제조사
Brooks
제품정보
white; 1 roll
수량
수량증가수량감소
IntelliXmark™ Printer Ribbon
Cat No.
76-1003
규격
1 ea
제조사
Brooks
제품정보
black; 1 roll
수량
수량증가수량감소
IntelliXmark™ Printer Ribbon
Cat No.
76-1004
규격
1 ea
제조사
Brooks
제품정보
universal black; 1 roll
수량
수량증가수량감소
IntelliXmark™ Tube Adapter
Cat No.
76-2001
규격
1 ea
제조사
Brooks
제품정보
hole diameter 8.5mm, for FluidX 96-format tubes and any other 9mm external diameter tube; 1 adapter
수량
수량증가수량감소
IntelliXmark™ Tube Adapter
Cat No.
76-2002
규격
1 ea
제조사
Brooks
제품정보
hole diameter 12.7mm, for FluidX 48-format cryo tubes and any other 12.7mm external diameter tubes; 1 adapter
수량
수량증가수량감소
IntelliXmark™ Tube Adapter
Cat No.
76-2003
규격
1 ea
제조사
Brooks
제품정보
hole diameter 11.5mm, for 1.5ml/2ml tubes; 1 adapter
수량
수량증가수량감소
IntelliXmark™ Tube Adapter
Cat No.
76-2005
규격
1 ea
제조사
Brooks
제품정보
hole diameter 10.4mm, for 2ml screw cap tubes (10mm diameter); 1 adapter
수량
수량증가수량감소
IntelliXmark™ Tube Adapter
Cat No.
76-2006
규격
1 ea
제조사
Brooks
제품정보
hole diameter 18mm, for 15ml tubes; 1 adapter
수량
수량증가수량감소
IntelliXmark™ Tube Adapter
Cat No.
76-2007
규격
1 ea
제조사
Brooks
제품정보
hole diameter 30mm, for 50ml tubes; 1 adapter
수량
수량증가수량감소
IntelliXmark™ Tube Adapter
Cat No.
76-2008
규격
1 ea
제조사
Brooks
제품정보
hole diameter 8.2mm, for Matrix tubes; 1 adapter
수량
수량증가수량감소
IntelliXmark™ Tube Adapter
Cat No.
76-2009
규격
1 ea
제조사
Brooks
제품정보
hole diameter 6.4mm, for 0.2ml tubes; 1 adapter
수량
수량증가수량감소
