제품특징

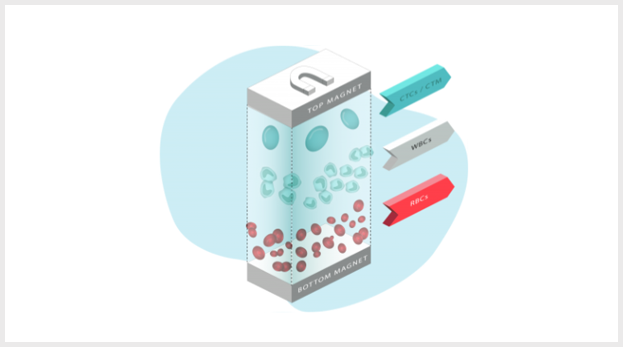

Principle
- 어떠한 표지나 인위적 조작이 없는 Label-free 방식의 Cell Sorter

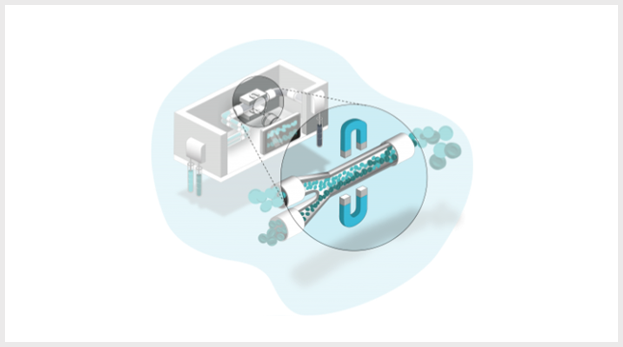

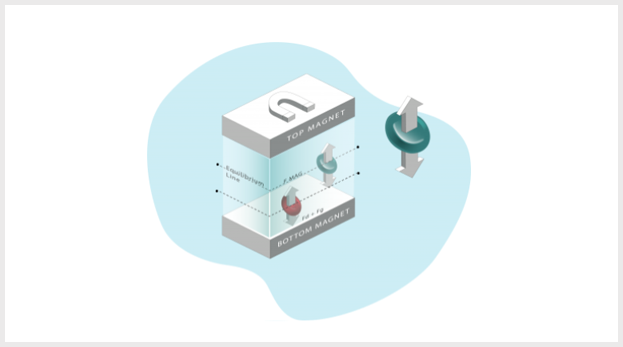

- 자석으로 둘러싸인 채널로 세포를 흐르게 하면, 세포 고유의 물리적 특성에 따라 부상 높이가 다르게 됨

- 세포 유형이나 상태에 따라 개별 세포 분리 가능

Sample Flexibility
- 민감한 면역 세포나 수가 제한적인 Primary 세포들도 damage없이 분리 가능
- 마커 연구가 부족한 비주류 연구 분야나 기기 오염이 우려되는 Sample들도 문제 없이 분리 가능

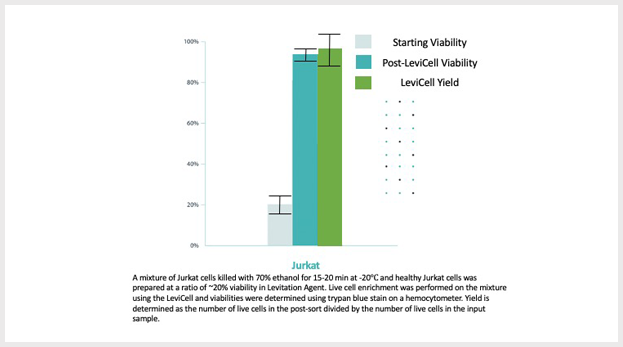

High Yield and Viability
- 기존의 Cell Sorting 방식 대비 높은 yield와 viability 비율을 제공함

Ultra Fast
- 전체 런타임 약 20분: 시간 80% 절약 가능

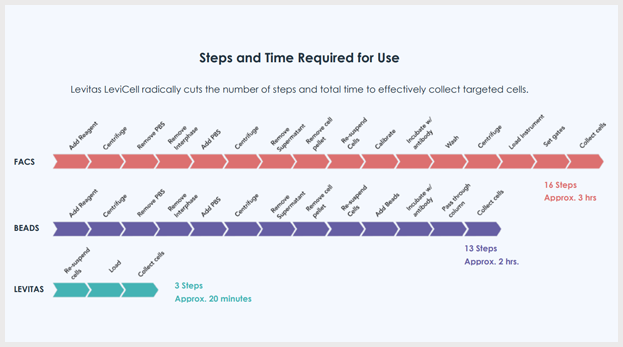

Revolutionary Workflow

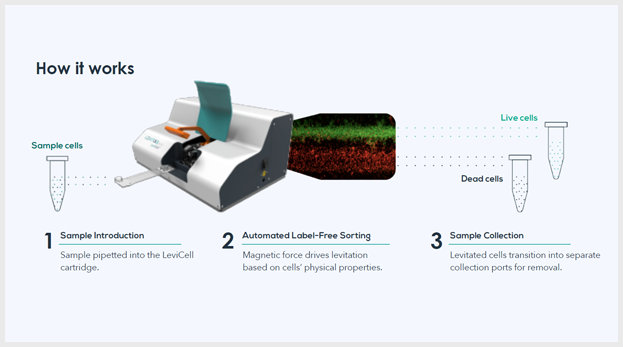

- 단 3단계로 구성된 간편하고 심플한 workflow
① Sample Introduction
② Automated Label-Free Sorting
③ Sample Collection

- 2개의 형광 채널과 1개의 광학 렌즈를 통한 실시간 Cell Sorting 과정 확인 및 검증 가능
Easy to Use
- 실험 전 Sample의 Purification 또는 준비 과정이 필요 없어 소요 시간이 매우 적음
- 각 Cell에 맞는 기기 Calibration 과정이 필요 없음

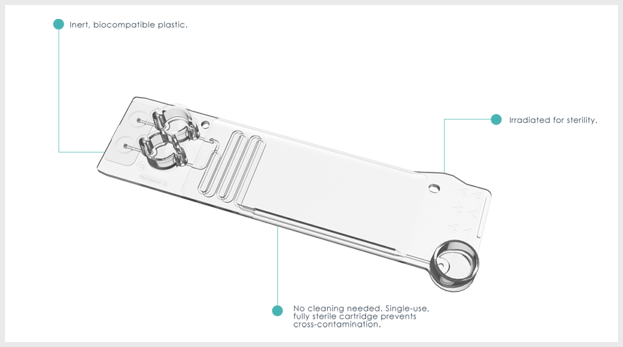

- 멸균된 Consumable Kit(카트리지) 사용으로 실험 전/후 기기 세척이 필요하지 않음

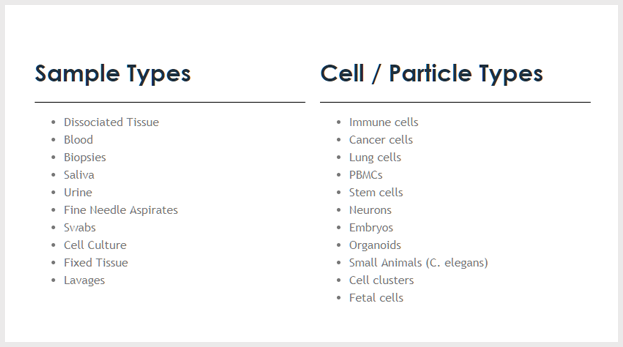

Applications
- Sample Prep
- Bacteriology
- Oncology
- Stem Cells
- Immunology
제품사양
Flow Rates |
Minimum: 1 μl/min Maximum: 250 μl/min |
Brightfield |
Excitation (nm): 530 Emission (nm) 530 |
Fluorescence 1 |
Excitation (nm): 474 Emission (nm) 524 |
Fluorescence 2 |
Excitation (nm): 560 Emission (nm) 628 |
Density Range and Resolution |
< 1.0 g/mL to >1.3g/mL 0.01g/mL or ~1% |
Power |
110V/220V |
Input Cells |
Up to 2000000 |
Sample Volume |
220μL |
Dead Volume |
5μl |
Size Range |
<1μm 350μm L |
